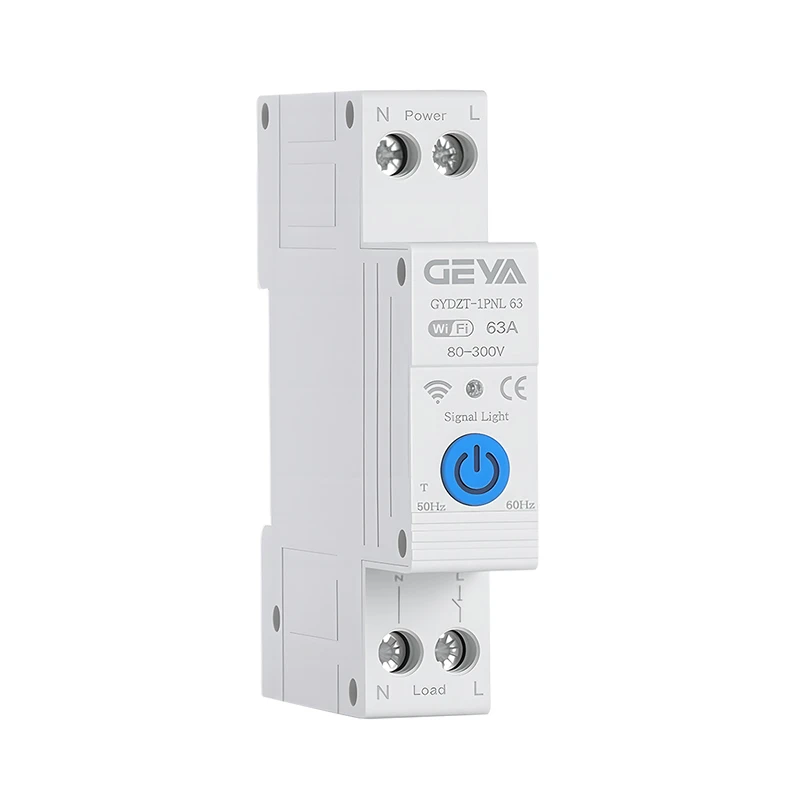

GYDZT Economical Smart Circuit Breaker

Ավտոմատներ և պաշտպանիչներ։ GYDZT Economical Smart Circuit Breaker։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։

Բրենդ	GEYA
Ապրանքային խումբ	Ավտոմատներ և պաշտպանիչներ

Տեխնիկական բնութագրեր

Parameter	Specification / Range
Rated Supply Voltage	AC 230V
Operation Voltage Range	AC 80V – 400V (Single Phase)
Rated Frequency	50/60Hz
Electric Current (>A)	1A – 63A (Adjustable, Accuracy 0.1A)
Over Voltage (>U) Setting	120V – 300V (Adjustable, Default: 275V)
Under Voltage (<U) Setting	80V – 210V (Adjustable, Default: 175V)
Electric Leakage Protection	10mA – 99mA (Default: 50mA, Can be turned off)
>U and <U Trip Delay	0.5s
Over Current / Leakage Protect Times	1 – 30 times (Default: 5, Can be turned off)
Power Display Range	0 – 99999.9 kW/h
Reset / Start Delay	10s – 99s (Default: 10s)
Operating Temperature	-30 °C to 70 °C

Function / Feature	T	J	JT	JL	JLS	DJ	App Settings & Details
ON/OFF, Timing	•	•	•	•	•	•	4 timing modes (30 sets of settings)
Reclosing	○	•	•	•	•	•	Automatic re-closer APP (ON/OFF)
Metering	○	•	•	•	•	•	View electricity input/consumption (Prepaid)
Under voltage (adjustable)	○	○	•	•	•	•	80V-210V (Default: 175V)
Over voltage (adjustable)	○	○	•	•	•	•	120V-300V (Default: 275V)
Over current (adjustable)	○	•	•	•	•	•	1.0A-63A (Default: 63A)
Reclosing time (adjustable)	○	○	•	•	•	•	Delay time: 10s-99s (Default: 10s)
Reclosing times (adjustable)	○	○	•	•	•	•	1-30 times off (Default: 5)
PV bidirectional metering	○	○	○	•	•	•	View PV power generation to State Grid
Leakage current (adjustable)	○	○	○	•	•	•	10-99mA (Default: 50mA)
Temperature (adjustable)	○	○	•	•	•	•	Over temperature protection: 10-85°C
Over current delay (adjustable)	○	○	○	○	○	•	Delay time: 1s-15s (Default: 1s)
Loss of current delay (adjustable)	○	○	○	○	○	•	Delay time: 1s-15s (Default: 1s)
