GEYA

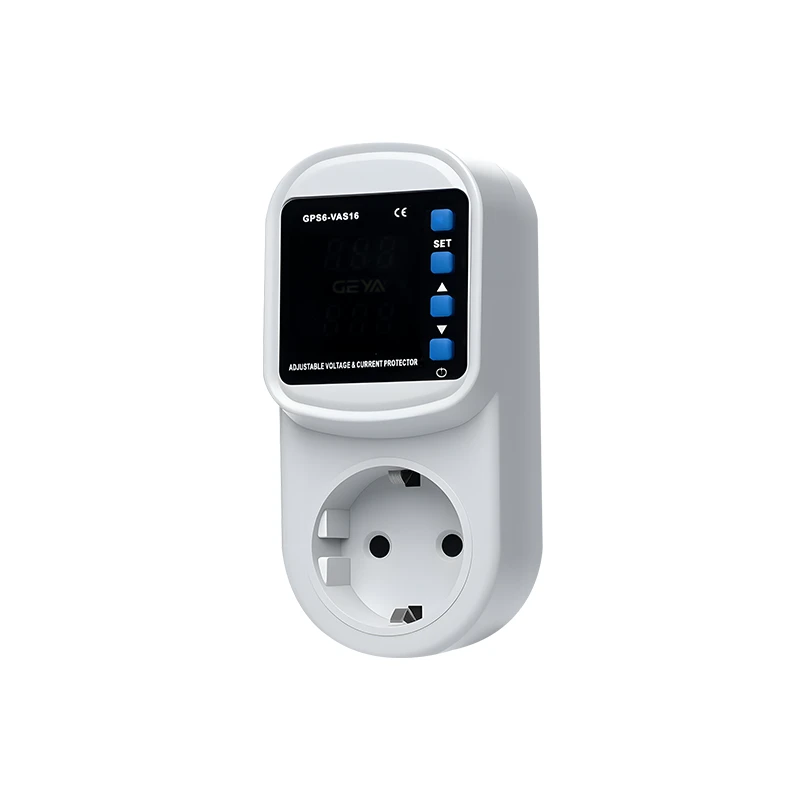

GPS6-VAS16 Voltage Protection Socket With Display
Լարման և գերլարման պաշտպանիչներ։ GPS6-VAS16 Voltage Protection Socket With Display։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Լարման և գերլարման պաշտպանիչներ |
Տեխնիկական բնութագրեր
| Type | Effective Value | Unit | Accuracy | Description |
| Effective voltage range | AC 80~300 | V | 1% | Can be calibrated, higher accuracy |
| Effective current range | AC 0.1~16.0 | A | 1% | Can be calibrated, higher accuracy |
| Frequency range | 40~70 | Hz | 1% | Can be calibrated, higher accuracy |
| Screen refresh rate | >1000 | Hz | — | — |
| Multimeter update | 0.1~1.0 | S | 1% | Screen value update |
| Multimeter algorithm | RMS | — | — | Algorithm for mains power grid |
| Over/under voltage hysteresis | 5 | V | — | Fixed 5V backlash |
| Timer range | 1~999 | S | 1% | User settings |
| Operating Time | 0.1~10.0 | S | 1% | User settings |
| Effective DC range | DC 80~300 | V | 1% | — |
| Code | Option | Set Range | Default |
| P1 | Power-on delay | 1-999S | 5S |
| P2 | Recovery delay | 1-999S | 30S |
| P3 | Overvoltage | 130-300V | 270V |
| P4 | Overvoltage recovery value | 125-295V | 265V |
| P5 | Undervoltage | 80-210V | 170V |
| P6 | Undervoltage recovery value | 85-215V | 175V |
| P7 | Overvoltage action delay | 0.1-10.0S | 0.5S |
| P8 | Voltage correction | -10%~+10% | 0V |
| P9 | Overcurrent | 1-16A | 16A |
| P10 | Overflow action delay | 0.1-10.0S | 1.0S |
| P11 | Continuous overcurrent counting | 0-20 times | 0 times |
| P12 | Current correction | -10%~+10% | 0A |
| P13 | Frequency correction | -2.5%~+2.5% | 0Hz |
| P14 | Fast Power Failure Protection | ON/OFF | ON |
| P15 | Display mode | 1: Standards, 2: Manual, 3: Auto | 1: Standards |
| P16 | Automatic reset | ON/OFF | ON |
| P17 | Action/knife mode | ON/OFF | ON |
| P18 | Energy saving mode | ON/OFF | OFF |
| P19 | Setup lock password | 000-999 | 112 |
