GEYA

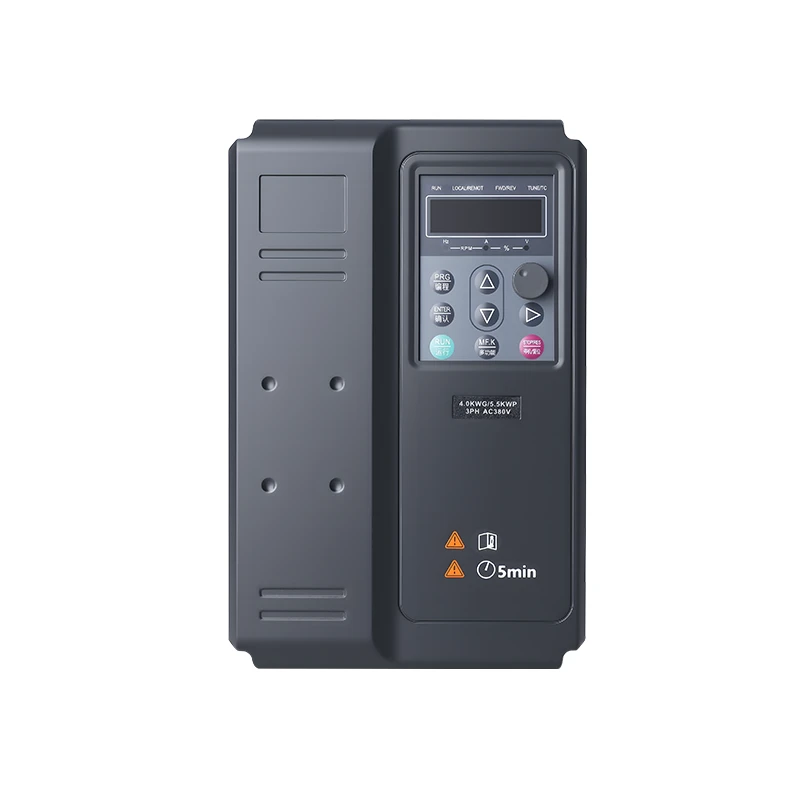

G380L Elevator-specific Variable Frequency Drive
Պարագաներ և այլ սարքեր։ G380L Elevator-specific Variable Frequency Drive։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Պարագաներ և այլ սարքեր |
Տեխնիկական բնութագրեր
| Frame Type | Molded Enclosure |
| Protection Level | IP20 / UL open type, IP65 / UL |
| Supply Voltage / Power | 3PH AC 200…240V: 2.2…7.5kW (3…10 hp) 3PH AC 380…480V: 3.7…15kW (5…20 hp) |
| Motor Control | Open Loop Vector |
| Max. Frequency | Vector: 0-100Hz |
| Torque Control | Vector: 0.3Hz / 180% |
| Overload Capacity | 150% of rated current for 120s; 180% of rated current for 10s |
| Input and Output | Digital I/O: 7/1 | Analog I/O: 1/1 | Speed feedback I/O: 1/1 | Relay output: 2 |
| Plug-in Card | Digital I/O: 5/1 | Analog I/O: 1/1 | Communication: RS485, CAN |
| Other Features | NTC / PT100 / PT1000 sensor compatible. Sequence programming available for constant pressure and temp control. |
| Ambient Temperature | -10°C to 40°C without derating / up to 60°C with derating. Humidity up to 90%HR. Optional up to -20°C. |
| Rated Input Frequency | 50/60 Hz, ±5% (47.5 to 63Hz) |
| Max. Output Voltage | Proportional to input voltage |
| Dimensions (H*W*D) | 248 * 160 * 183 mm (Smaller capacities) / 322 * 208 * 192 mm (Larger capacities) |
| Mounting Hole | Φ5 / Φ6 |
| Voltage Class | Applicable Motor (kW) | Applicable Motor (HP) | Rated Input Current (A) | Output Current (A) | Power Capacity (kVA) | Rec. Braking Resistor (W) |
| 220VAC (3-phase 200-240V) | 2.2 | 3 | 10.5 | 9 | 5.9 | 500 |
| 3.7 | 5 | 14.6 | 13 | 8.9 | 750 | |
| 5.5 | 7.5 | 26 | 25 | 17 | 1200 | |
| 7.5 | 10 | 35 | 32 | 21 | 1500 | |
| 380/400/415VAC (3-phase 380-480V) | 4.0 | 5 | 10.5 | 9 | 5.9 | 750 |
| 5.5 | 7.5 | 14.6 | 13 | 8.9 | 1200 | |
| 7.5 | 10.0 | 20.5 | 17.0 | 11 | 1500 | |
| 11 | 15 | 26 | 25 | 17 | 2500 | |
| 15 | 20 | 35 | 32 | 21 | 3000 |
