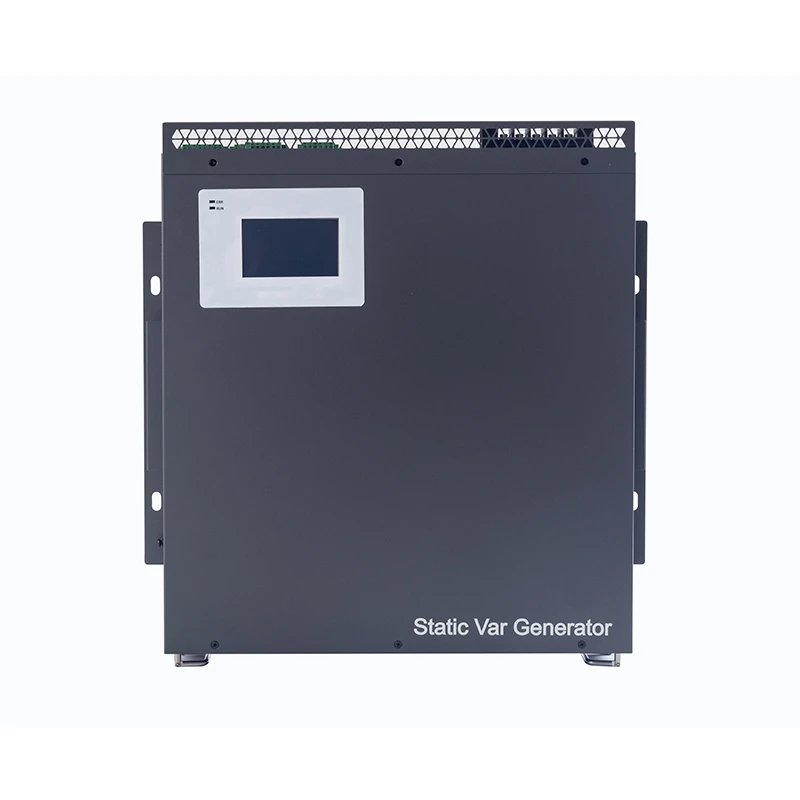

GY-SVG-SiC Silicon Carbide Static Var Generator
Էլեկտրաէներգիայի որակ։ GY-SVG-SiC Silicon Carbide Static Var Generator։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Էլեկտրաէներգիայի որակ |
Տեխնիկական բնութագրեր
| Parameter | 220V Model | 380V Model |
| Operating Voltage | AC 220V (-20% ~ +20%) | AC 380V (-20% ~ +20%) |
| Rated Compensation Capacity | 37 kvar, 50 kvar | 75 kvar, 100 kvar |
| Altitude | < 2000 m (Above 2000 m, derate according to GB/T 3859.2) | |
| Ambient Temperature | -10°C ~ +50°C (Above 40°C, capacity derating ≤ 30%) | |
| Relative Humidity | ≤ 90%, no condensation at a monthly minimum temperature of 25°C | |
| Pollution Degree | Class III or below | |
| Operating Frequency | 50Hz / 60Hz (45Hz ~ 63Hz) | |
| Grid Configuration | Three-phase three-wire (3P3W), Three-phase four-wire (3P4W) | |
| Parallel Units | Unlimited | |
| Efficiency | Overall efficiency ≥ 97% (Peak efficiency ≥ 98.5%) | |
| Switching Frequency | 30 kHz | |
| Function Selection | Reactive power compensation / Reactive power + three-phase unbalance compensation | |
| Reactive Compensation Rate | ≥ 99% | |
| Unbalance Compensation | Unbalance degree after compensation ≤ 5% | |
| Response Time | Transient < 50 µs | Full response < 10 ms | |
| Noise Level | ≤ 65 dB | |
| Communication Method | 2× RS485 communication ports (Wi-Fi supported) | |
| Protection Functions | Overload, software/hardware overcurrent, grid overvoltage/undervoltage, grid voltage unbalance, power supply failure, over-temperature, frequency anomaly, short circuit, resonance protection, etc. | |
| Overload Capability | Rated 1.2 times overload for 60 seconds | |
| Installation Method | Rack-mounted / Wall-mounted | |
| Cable Entry | Rear cable entry (rack-mount) / Top cable entry (wall-mount) | |
| Protection Rating | IP20 (IP54 customizable) | |
| Neutral Line Filtering | Neutral line filtering capacity is 3 times that of phase filtering capacity | |
| Cooling Method | Forced air cooling | |
| EMC | Radiated Emission (RE) and Conducted Emission (CE) meet Class A test standard |
