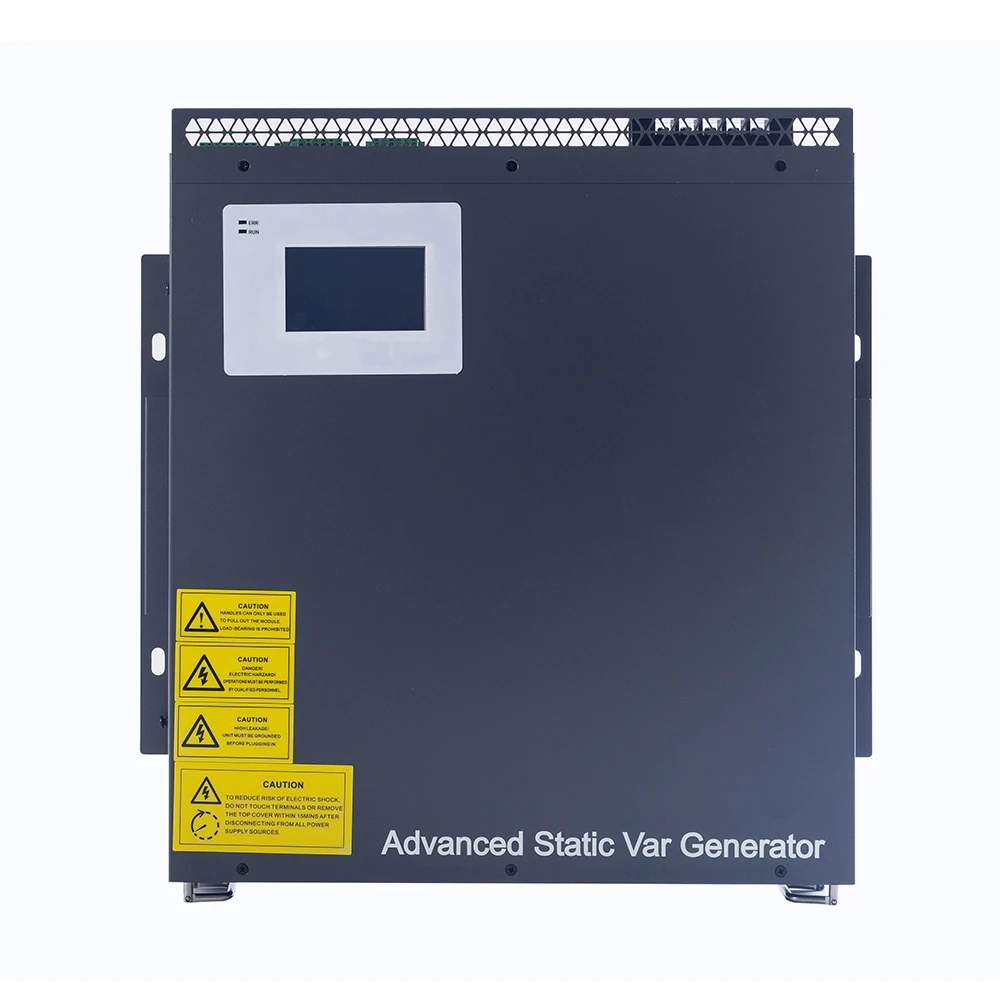

GY-ASVG Advanced Static Var Generator
Էլեկտրաէներգիայի որակ։ GY-ASVG Advanced Static Var Generator։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Էլեկտրաէներգիայի որակ |
Տեխնիկական բնութագրեր
| Model | 220V | 380V | 500V | 690V | 800V |
| Altitude | < 2000 m; above 2000 m, derate according to GB/T 3859.2 | ||||
| Ambient Temperature | -10 °C ~ +50 °C (above 40 °C, capacity derating ≤ 30%) | ||||
| Relative Humidity | ≤ 90% RH, no condensation on the surface at a monthly minimum temperature of 25 °C | ||||
| Pollution Degree | ≤ Class III | ||||
| Operating Voltage | AC 220V (-20% ~ +20%) | AC 380V (-20% ~ +20%) | AC 500V (-20% ~ +20%) | AC 690V (-20% ~ +15%) | AC 800V (-20% ~ 850V) |
| Operating Frequency | 50 Hz / 60 Hz (45 Hz ~ 63 Hz) | ||||
| Rated Compensation Capacity | 3 / 5 / 7 / 10 / 17 / 25 / 37 / 50 / 75 kvar | 5 / 10 / 15 / 20 / 35 / 50 / 75 / 100 / 150 kvar | 90 kvar | 120 kvar | 150 kvar |
| Grid Configuration | Three-phase three-wire (3P3W) / Three-phase four-wire (3P4W) | 3P3W / 3P4W | Three-phase three-wire (3P3W) | ||
| Number of Parallel Units | No Restrictions | ||||
| Overall Efficiency | ≥ 97% | ||||
| Switching Frequency | 32 kHz | 16 kHz | 16 kHz | 12.8 kHz | 12.8 kHz |
| Function Selection | A, B, A+B, B+A | A, B, A+B, B+A, B+C, A+C, B+C+A, A+C+B | A, B, A+B, B+A, B+C, A+C, B+C+A, A+C+B | A, B, A+B, B+A, B+C, A+C, B+C+A, A+C+B | A, B, A+B, B+A |
| Reactive Compensation Rate | ≥ 99% | ||||
| Harmonic Compensation | Rate ≥ 95%; 2nd–50th order, per-order compensation rate adjustable | ||||
| Unbalance Compensation | — | ≤ 5% after compensation | ≤ 5% after compensation | ≤ 5% after compensation | — |
| Neutral Line Filtering | Neutral-line filtering capacity is 2× the phase filtering capacity (3× customizable) | ||||
| Full Response Time | Reactive < 10 ms; Harmonic < 40 ms | ||||
| Noise Level | ≤ 60 dB | ≤ 65 dB | ≤ 65 dB | ≤ 65 dB | ≤ 65 dB |
| Communication Method | 2× RS485 communication ports (Wi-Fi supported) | ||||
| Protection Functions | Overload, software/hardware overcurrent, grid over-/undervoltage, grid voltage unbalance, power supply failure, over-temperature, frequency anomaly, short-circuit protection, etc. | ||||
| Overload Capability | Rated 1.2× overload for 60 seconds | ||||
| Installation Method | Rack-mounted / Wall-mounted | ||||
| Cable Entry | Rear cable entry (rack-mount) / Top cable entry (wall-mount) | ||||
| Protection Rating | IP20 (IP54 available on request / customizable) | ||||
| Cooling Method | Forced air cooling |
