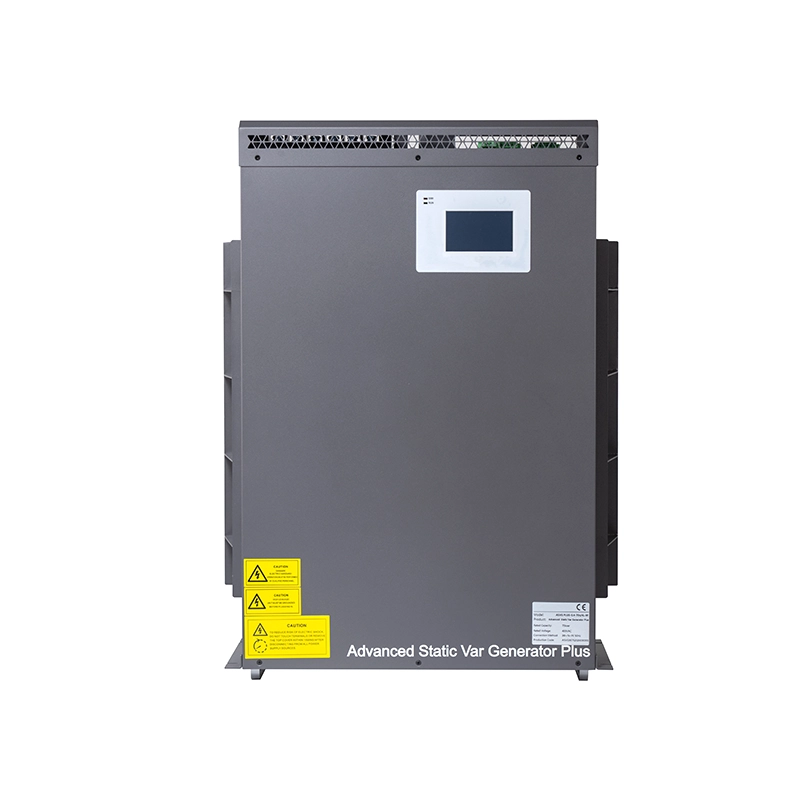

GY-ASVG-PLUS High-spec Advanced Static Var Generator
Էլեկտրաէներգիայի որակ։ GY-ASVG-PLUS High-spec Advanced Static Var Generator։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Էլեկտրաէներգիայի որակ |
Տեխնիկական բնութագրեր
| Module Parameter | 220V Model | 380V Model |
| Altitude | < 2000 m; above 2000 m, derate according to GB/T 3859.2 | |
| Ambient Temperature | -10 °C ~ +50 °C (above 40 °C, capacity derating ≤ 30%) | |
| Relative Humidity | ≤ 90% RH, no condensation on the surface at a monthly minimum temperature of 25 °C | |
| Pollution Degree | ≤ Class III | |
| Operating Voltage | AC 220V (-20% ~ +20%) | AC 380V (-20% ~ +20%) |
| Operating Frequency | 50 Hz / 60 Hz (45 Hz ~ 63 Hz) | |
| Rated Compensation Capacity | 37 kvar, 50 kvar | 75 kvar, 100 kvar |
| Grid Configuration | Three-phase three-wire (3P3W) / Three-phase four-wire (3P4W) | |
| Number of Parallel Units | No restrictions | |
| Overall Efficiency | ≥ 98% | |
| Switching Frequency | 16 kHz | |
| Function Selection | A, B, A+B, B+A, B+C, A+C, B+C+A, A+C+B (A: Reactive, B: Harmonic, C: Unbalance) | |
| Reactive Compensation Rate | ≥ 99% | |
| Unbalance Compensation Capability | Unbalance degree after compensation ≤ 5% | |
| Current Harmonic Compensation | ≥ 95%; 2nd to 50th harmonics, individual compensation rate adjustable | |
| Neutral Line Filtering Capability | Neutral line filtering capacity is 3 times that of phase filtering capacity | |
| Full Response Time | Reactive power < 10 ms; Harmonics < 40 ms | |
| Cooling Method | Forced air cooling | |
| Noise Level | ≤ 65 dB | |
| Communication Method | 2× RS485 communication interfaces (Wi-Fi supported) | |
| Protection Functions | Overload, software/hardware overcurrent, grid overvoltage/undervoltage, grid voltage unbalance, power supply failure, overtemperature, frequency anomaly, short circuit protection, resonance protection, etc. | |
| Overload Capability | Rated 1.2 times overload for 60 seconds | |
| Installation Method | Rack-mount / Wall-mount | |
| Cable Entry | Rear cable entry (rack-mount) / Top cable entry (wall-mount) | |
| Protection Rating | IP20 (IP54 available on request / customizable) | |
| Size (W×D×H) | 500 × 730 × 240 mm | |
| Electromagnetic Compatibility | EMC – RE and CE meet Class A test standard |
