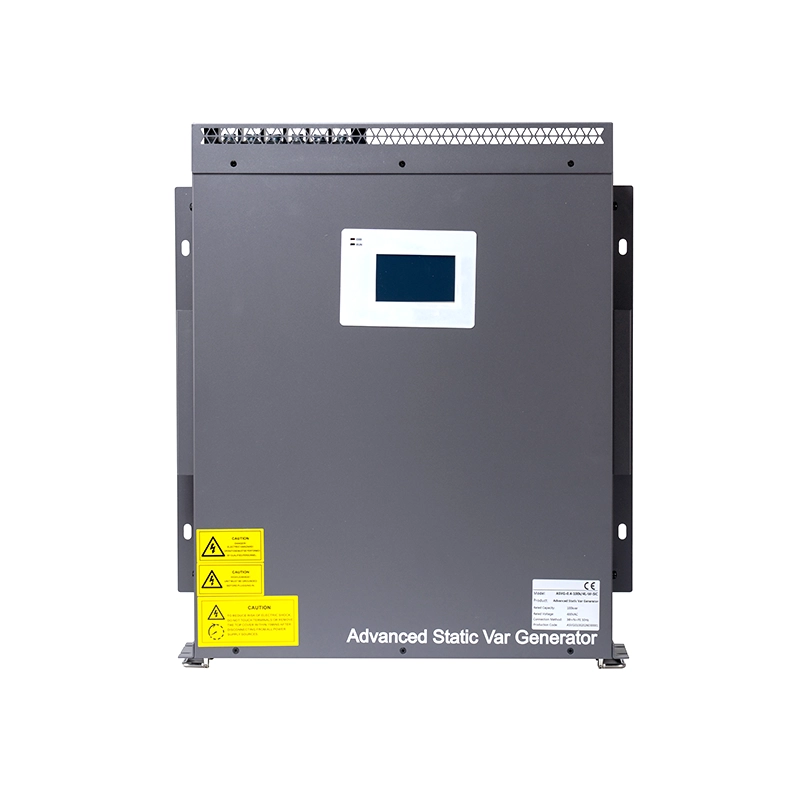

GY-ASVG-SiC SiC-based Advanced Static Var Generator
Էլեկտրաէներգիայի որակ։ GY-ASVG-SiC SiC-based Advanced Static Var Generator։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Էլեկտրաէներգիայի որակ |
Տեխնիկական բնութագրեր
| Model | 220V | 380V |
| Operating Voltage | AC220V (-20% ~ +20%) | AC380V (-20% ~ +20%) |
| Rated Compensation Capacity | 37Kvar, 50Kvar | 75Kvar, 100Kvar |
| Grid Configuration | Three-phase three-wire, Three-phase four-wire | |
| Overall Efficiency | ≥ 98% (Peak efficiency > 98.5%) | |
| Function Selection | A, B, A+B, B+A, B+C, A+C, B+C+A, A+C+B (A: Reactive, B: Harmonic, C: Three-phase unbalance) | |
| Reactive Compensation Rate | ≥ 99% | |
| Harmonic Compensation | ≥ 95% (2nd to 50th order, individual order adjustable) | |
| Unbalance Compensation | Unbalance degree after compensation ≤ 5% | |
| Response Time | Reactive power: < 10ms, Harmonics: < 40ms | |
| Neutral Line Filtering | Capacity is 3 times that of phase filtering capacity | |
| Altitude & Temperature | < 2000m (derate above 2000m) | -10°C to +50°C (derate > 40°C) | |
| Communication Method | 2 RS485 communication interfaces (Wi-Fi supported) | |
| Installation & Size | Rack-mount / Wall-mount | Size: 500*600*100mm |
