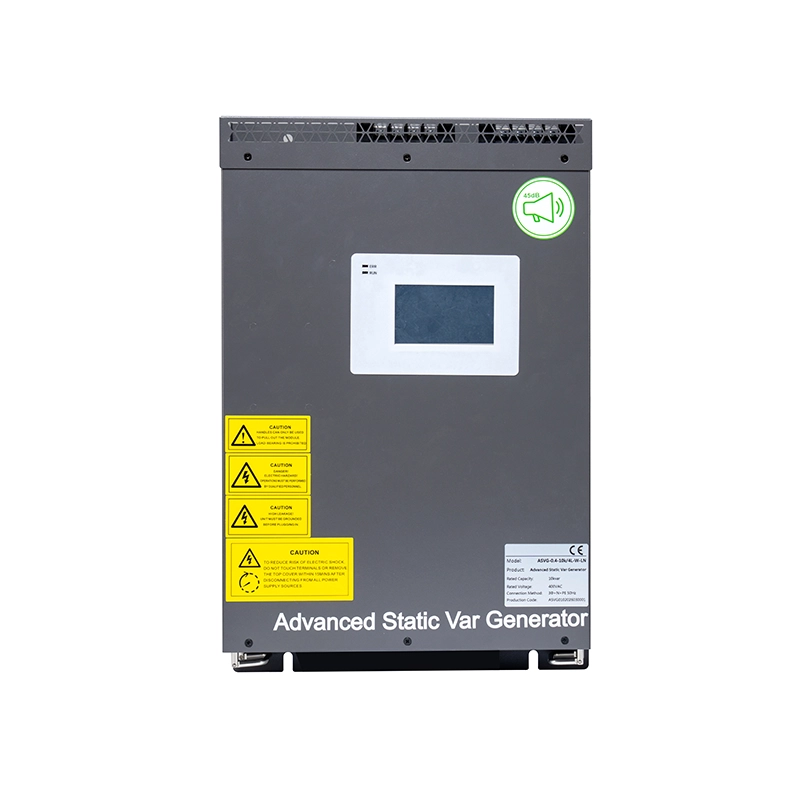

GY-ASVG-LN Low-noise Advanced Static Var Generator
Էլեկտրաէներգիայի որակ։ GY-ASVG-LN Low-noise Advanced Static Var Generator։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Էլեկտրաէներգիայի որակ |
Տեխնիկական բնութագրեր
| Model | 220V Series | 380V Series |
| Operating Voltage | AC 220V (-20% ~ +20%) | AC 380V (-20% ~ +20%) |
| Rated Capacity | 2kvar, 3kvar, 5kvar | 3kvar, 5kvar, 10kvar |
| Grid Configuration | Three-phase three-wire, Three-phase four-wire | Three-phase four-wire |
| Parallel Units | 2kvar (No parallel); 3kvar, 5kvar (Parallel allowed) | 3kvar (No parallel); 5kvar, 10kvar (Parallel allowed) |
| Noise Level | 2kvar ≤38dB / 3kvar ≤40dB / 5kvar ≤45dB | 3kvar ≤38dB / 5kvar ≤40dB / 10kvar ≤45dB |
| Switching Frequency | 30kHz (2kvar) / 16kHz (3kvar, 5kvar) | 30kHz (3kvar) / 16kHz (5kvar, 10kvar) |
| Load Current Range | 0 – 100A | |
| Overall Efficiency | ≥ 97% | |
| Function Selection | A, B, A+B, B+A, B+C, A+C, B+C+A, A+C+B (A: Reactive, B: Harmonic, C: Unbalance) | |
| Compensation Rates | Reactive ≥ 99% | Harmonics ≥ 95% (2nd-50th) | Unbalance ≤ 5% | |
| Neutral Line Filtering | Neutral line filtering capacity is 1.5 times that of phase filtering capacity | |
| Response Time | Reactive power: < 10ms | Harmonics: < 40ms | |
| Communication | 2 RS485 communication interfaces (Wi-Fi supported) | |
| Size (W×D×H) | 390 × 525 × 90.2 mm |
