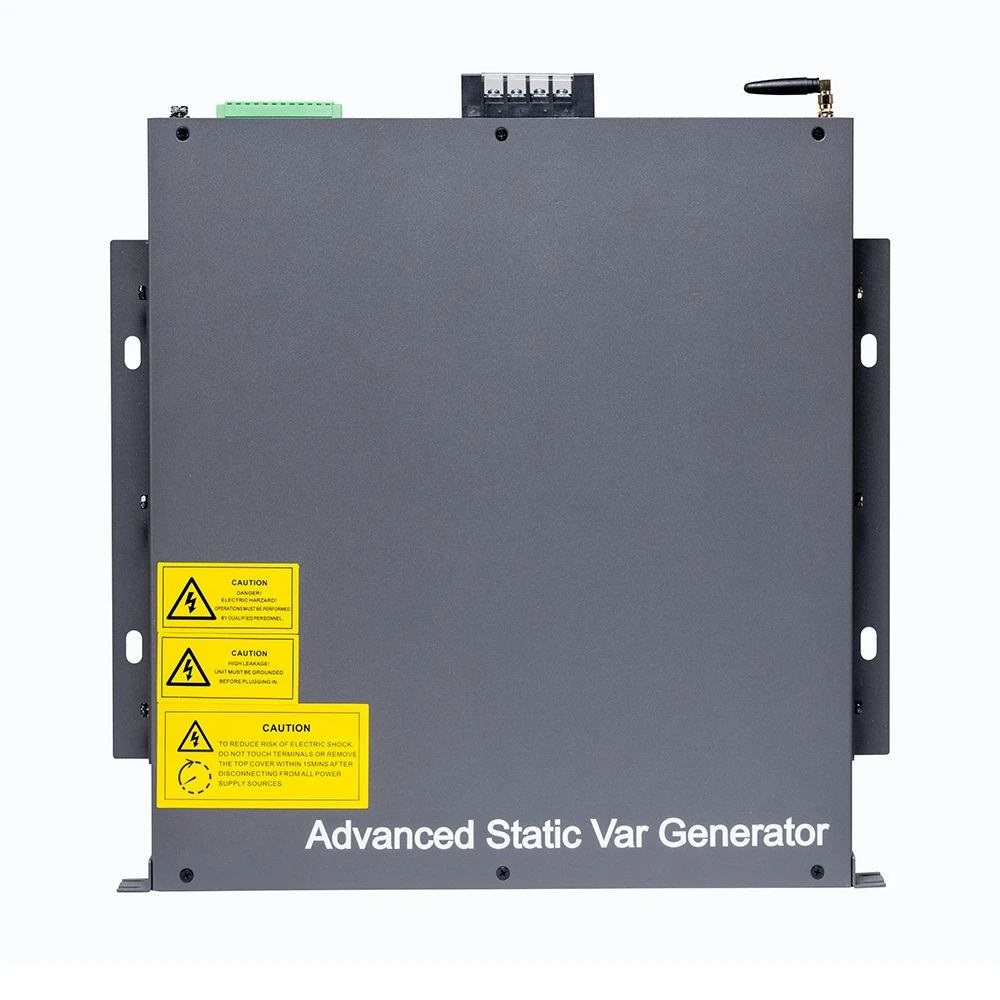

GY-ASVG-1U Max-thin Advanced Static Var Generator
Էլեկտրաէներգիայի որակ։ GY-ASVG-1U Max-thin Advanced Static Var Generator։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Էլեկտրաէներգիայի որակ |
Տեխնիկական բնութագրեր
| Technical Parameters | 220V Model | 380V/400V Model |
| Operating Voltage | AC 220V (-20% ~ +20%) | AC 380V/400V (-20% ~ +20%) |
| Rated Compensation Capacity | 3Kvar | 5Kvar |
| Operating Frequency | 50Hz / 60Hz (45Hz ~ 63Hz) | |
| Grid Configuration | Three-phase three-wire / Three-phase four-wire | |
| Number of Parallel Units | No restrictions | |
| Overall Efficiency | ≥97% | |
| Compensation Performance | Reactive power: ≥99% Harmonics: ≥95% (2nd to 50th) Unbalance degree: ≤5% | |
| Full Response Time | Reactive power: <10ms | Harmonics: <40ms | |
| Noise Level | ≤60dB | |
| Communication Method | 2 RS485 interfaces (Wi-Fi supported) | |
| Protection Functions | Overload (1.2 times for 60s), overcurrent, over/undervoltage, unbalance, short circuit, resonance protection | |
| Installation & Cable Entry | Rack-mount (Rear entry) / Wall-mount (Top entry) | |
| Protection Rating | IP20 (IP54 customizable on request) | |
| Dimensions (W*D*H) | 460 * 435 * 44.5 mm |
