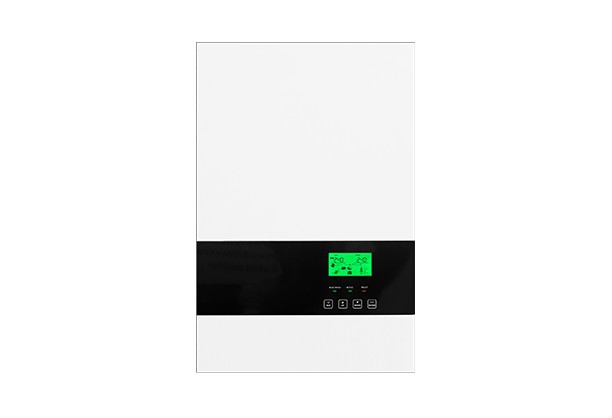

REVO VM II Series OFF Grid Energy Storage Inverter
Արևային և էներգիայի կուտակում։ REVO VM II Series OFF Grid Energy Storage Inverter։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Արևային և էներգիայի կուտակում |
Տեխնիկական բնութագրեր
| MODEL | REVO VM II 3000-24 | REVO VM II 5500-48 |
| Rated Power | 3000VA/ 3000W | 5500VA/ 5500W |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC(For Home Appliances) | |
| Frequency Range | 50Hz/60 Hz(Auto-sensing) | |
| OUTPUT | ||
| AC Voltage Regulation(Batt.Mode) | 230VAC±5% | |
| Surge Power | 6000VA | 11000VA |
| Efficiency (Peak) | up to 93.5% | |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 54 VDC |
| Overcharge Protection | 33 VDC | 63 VDC |
| SOLAR CHARGER &AC CHARGER | ||
| Maximum PV Array Open Circuit Voltage | 500 VDC | 500 VDC |
| Maximum PV Array Power | 5500 W | 5500 W |
| MPPT Range @ Operating Voltage | 120~450 VDC | 120~450 VDC |
| Maximum Solar Charge Current | 100A | 100A |
| Maximum AC Charge Current | 80A | 80A |
| Maximum Charge Current | 100A | 100A |
| PHYSICAL | ||
| Dimension,D xWx H(mm) | 100 x300 x440 | |
| Net Weight (kgs) | 9 | 10 |
| Communication Interface | USB/RS232 | |
| ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | -10°C to 50℃ | |
| Storage Temperature | -15°C to 60℃ | |
| SPECIAL FUNCTION | ||
| Supports lithium battery BMS communication |
