| Parameter | Source Value | Notes |

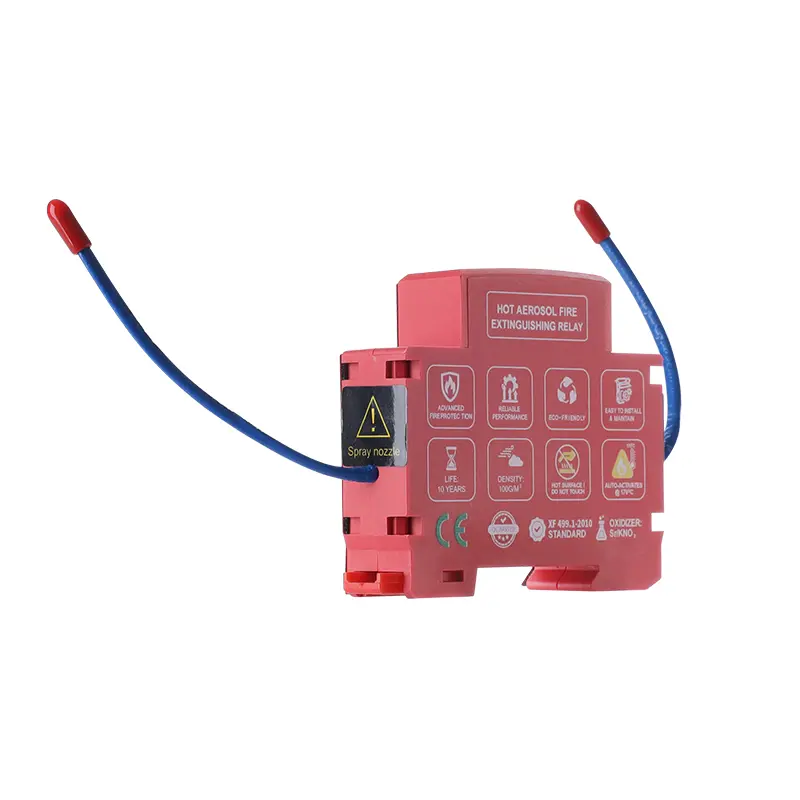

| Series | GQRR | Hot aerosol fire suppression device |
| Structure types | DIN Rail, Round, Rectangle | Select by mounting layout and enclosure space |
| Agent weight range | 10g, 20g, 30g, 40g, 50g | DIN Rail models are listed from 10g to 40g |
| Protected space guide | 10g: 0.1 m³; 20g: 0.2 m³; 30g: 0.3 m³; 40g: 0.4 m³ | 50g protected space needs confirmation before publishing |
| Activation mode | Thermal activation | Lead-wire activation structure |
| Thermal activation temperature | ≥170°C | Source workbook value |
| Spraying time | ≤6 seconds | Aerosol release time listed in the source workbook |
| Operating temperature | -50°C to 90°C | Working environment range |
| Relative humidity | 95% RH | Working environment humidity |
| Agent validity | 10 years | Replace according to product condition and local requirements |
| Shell material | PA66-V0 | Listed as nylon PA66-V0 |
| Color | Red | Listed in the model remark sheet |
| Standard lead wire | Two 10 cm lead wires, total 20 cm | Custom lead length available on request |
| Oxidizer composition | Nitric acid / potassium nitrate 50%-58% | Source workbook listing; confirm final SDS wording if required |
| Packing quantity | Inner box: 1 pc; middle box: 10 pcs; outer carton: 100 pcs | Source workbook merged value |
| Product dimensions | Need confirmation from dimension images | Dimension cells are embedded images in the source workbook |
