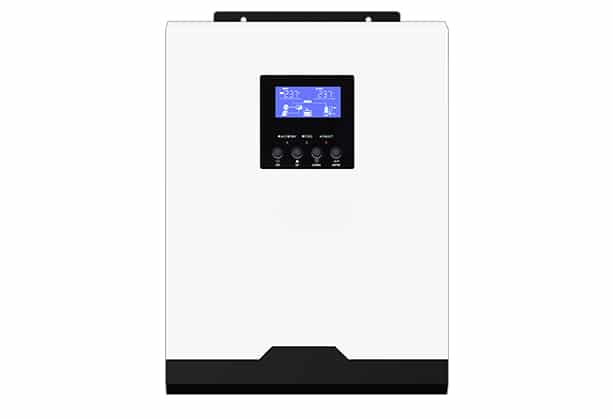

REVO VP Series Solar Energy Storage Inverter
Արևային և էներգիայի կուտակում։ REVO VP Series Solar Energy Storage Inverter։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Արևային և էներգիայի կուտակում |
Տեխնիկական բնութագրեր
| MODEL | REVO VP 1000-12 | REVO VM 1200-12 | REVO VP 2000-24 | REVO VM 2200-24 | REVO VP 3000-24 | REVO VM 3200-24 | REVO VP 5000-48 | REVO VM 5000-48 |
| Rated Power | 1000VA/1000W | 1200VA/1200W | 2000VA/2000W | 2200VA/2200W | 3000VA/3000W | 3200VA/3200W | 5000VA/5000W | |
| INPUT | ||||||||
| Voltage | 230 VAC | |||||||
| Selectable Voltage Range | 170-280 VAC(For Personal Computers); 90-280 VAC(For Home Appliances) | |||||||
| Frequency Range | 50 Hz/60 Hz(Auto-sensing) | |||||||
| OUTPUT | ||||||||
| AC Voltage Regulation (Batt. Mode) | 230VAC±5% | |||||||
| Surge Power | 2000VA | 4000VA | 6000A | 10000VA | ||||
| Efficiency (Peak) | 90%~93% | |||||||
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |||||||
| Waveform | Pure sine wave | |||||||
| BATTERY | ||||||||
| Battery Voltage | 12VDC | 24 VDC | 48 VDC | |||||
| Floating Charge Voltage | 13.5 VDC | 27 VDC | 54 VDC | |||||
| Overcharge Protection | 16 VDC | 31 VDC | 33 VDC | 63 VDC | ||||
| SOLAR CHARGER& AC CHARGER | ||||||||
| Solar Charger type | PWM | MPPT | PWM | MPPT | PWM | MPPT | PWM | MPPT |
| Maximum PV Array pen Circuit voltage | 55 VDC | 102 VDC | 80 VDC | 102 VDC | 80 VDC | 102 VDC | 105VDC | 145VDC |
| Maximum PV Array Power | 600 W | 700 W | 1200 W | 1400 W | 1200 W | 1800 W | 2400 W | 3000 W |
| MPPT Range @ operating Voltage | N/A | 17~ 80 VDC | N/A | 30~ 80 VDC | N/A | 30~80 VDC | N/A | 60~115 VDC |
| Maximum Solar Charge Current | 50A | 50A | 50 A | 50A | 50A | 65A | 50A | 65A |
| Maximum AC Charge Current | 20A | 20A | 20A | 20A | 25A | 25A | 60A | 60 A |
| Maximum Charge Current | 50A | 60A | 50A | 60 A | 70A | 80 A | 110A | 120A |
| PHYSICAL | ||||||||
| Dimension, DxWxH(mm) | 88×225 x320 | 103×225 x320 | 88×225 x320 | 103×245 x 330 | 100 x285 x334 | 118,3×285 360.4 | 100×300 x440 | 100x 302 x440 |
| Net Weight (kgs) | 4.4 | 4.4 | 5 | 5 | 6.3 | 6.5 | 8.5 | 9.7 |
| Communication interface | USB/RS232 | |||||||
| ENVIRONMENT | ||||||||
| Humidity | 5% to 95%Relative Humidity (Non-condensing) | |||||||
| operating Temperature | -10℃ to 50℃ | |||||||
| storage Temperature | -15℃ to 60℃ |
