GEYA

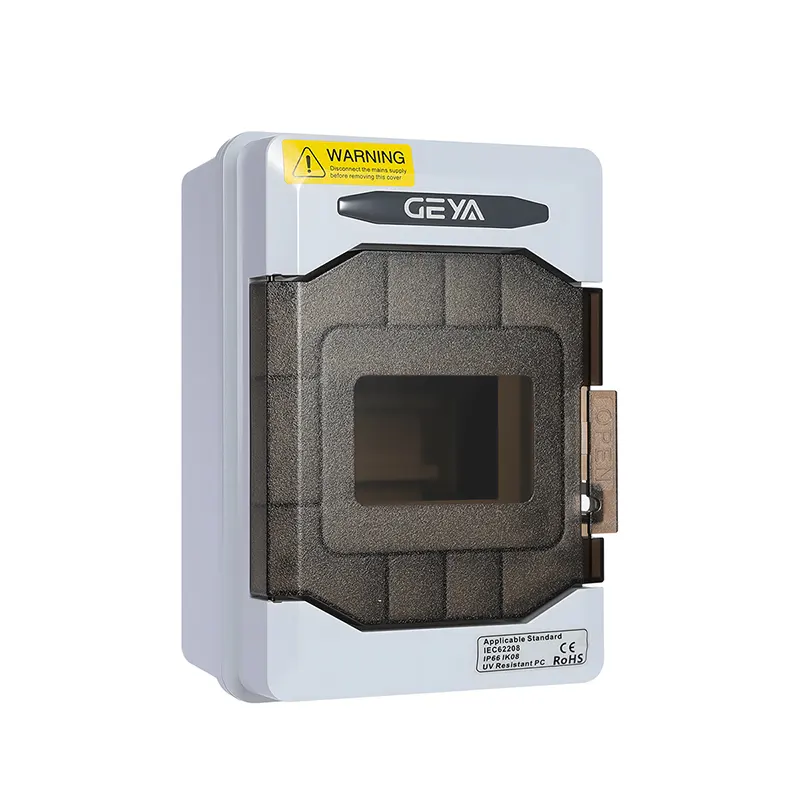

GBST-A IP66 High Performance Plastic Distribution Box
Պարագաներ և այլ սարքեր։ GBST-A IP66 High Performance Plastic Distribution Box։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Պարագաներ և այլ սարքեր |
Տեխնիկական բնութագրեր
| Size range | 4P, 6P, 9P, 12P, 18P, 24P, and 36P |
| Protection rating | IP66 |
| Construction | PC enclosure with alloy components |
| Busbar choices | No busbar, single busbar, or double busbar |
| Depth | 105 mm across all sizes |
| General Specifications | |
| Model series | GBST-A |
| Product type | Plastic distribution box |
| Enclosure material | PC |
| Other construction material | Alloy material |
| Protection rating | IP66 |
| Available ways | 4P, 6P, 9P, 12P, 18P, 24P, 36P |
| Busbar configurations | No busbar, single busbar, double busbar |
| Optional busbar conductor | Copper-aluminum alloy with 70% copper content |
| Default configuration | No busbar |
| Depth | 105 mm for all sizes |
| Ways | Width | Height | Depth | Overall Dimensions |
| 4P | 145 mm | 210 mm | 105 mm | 145 x 210 x 105 mm |
| 6P | 165 mm | 210 mm | 105 mm | 165 x 210 x 105 mm |
| 9P | 220 mm | 210 mm | 105 mm | 220 x 210 x 105 mm |
| 12P | 275 mm | 225 mm | 105 mm | 275 x 225 x 105 mm |
| 18P | 380 mm | 230 mm | 105 mm | 380 x 230 x 105 mm |
| 24P | 270 mm | 380 mm | 105 mm | 270 x 380 x 105 mm |
| 36P | 270 mm | 530 mm | 105 mm | 270 x 530 x 105 mm |
| Ways | Model | Busbar Configuration | Dimensions (W x H x D) |
| 4P | GBST-A4P | No Busbar | 145 x 210 x 105 mm |
| 4P | GBST-A4P1 | Single Busbar | 145 x 210 x 105 mm |
| 4P | GBST-A4P2 | Double Busbar | 145 x 210 x 105 mm |
| 6P | GBST-A6P | No Busbar | 165 x 210 x 105 mm |
| 6P | GBST-A6P1 | Single Busbar | 165 x 210 x 105 mm |
| 6P | GBST-A6P2 | Double Busbar | 165 x 210 x 105 mm |
| 9P | GBST-A9P | No Busbar | 220 x 210 x 105 mm |
| 9P | GBST-A9P1 | Single Busbar | 220 x 210 x 105 mm |
| 9P | GBST-A9P2 | Double Busbar | 220 x 210 x 105 mm |
| 12P | GBST-A12P | No Busbar | 275 x 225 x 105 mm |
| 12P | GBST-A12P1 | Single Busbar | 275 x 225 x 105 mm |
| 12P | GBST-A12P2 | Double Busbar | 275 x 225 x 105 mm |
| 18P | GBST-A18P | No Busbar | 380 x 230 x 105 mm |
| 18P | GBST-A18P1 | Single Busbar | 380 x 230 x 105 mm |
| 18P | GBST-A18P2 | Double Busbar | 380 x 230 x 105 mm |
| 24P | GBST-A24P | No Busbar | 270 x 380 x 105 mm |
| 24P | GBST-A24P1 | Single Busbar | 270 x 380 x 105 mm |
| 24P | GBST-A24P2 | Double Busbar | 270 x 380 x 105 mm |
| 36P | GBST-A36P | No Busbar | 270 x 530 x 105 mm |
| 36P | GBST-A36P1 | Single Busbar | 270 x 530 x 105 mm |
| 36P | GBST-A36P2 | Double Busbar | 270 x 530 x 105 mm |
