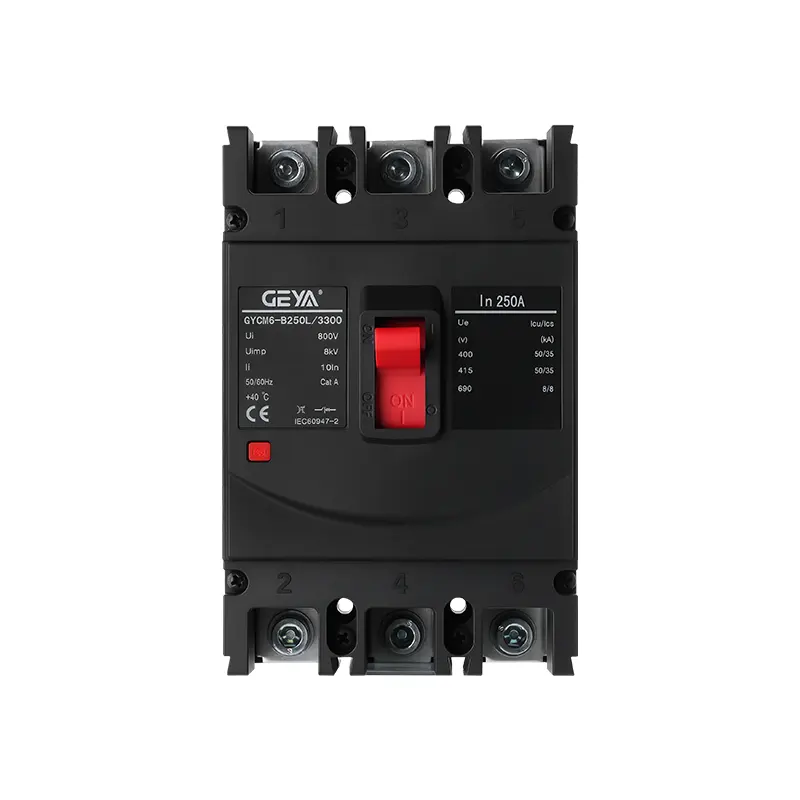

GYCM6 Economical Molded Case Circuit Breaker
Ավտոմատներ և պաշտպանիչներ։ GYCM6 Economical Molded Case Circuit Breaker։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ավտոմատներ և պաշտպանիչներ |
Տեխնիկական բնութագրեր
| Rated Frame Current Inm (A) | 63 | 125 | 250 | 400 | 630 | 800 | 1600 |
| Rated current In (A), 40°C | 10, 16, 20, 25, 32, 40, 50, 63 | 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 | 100, 125, 160, 180, 200, 225, 250 | 225, 250, 315, 350, 400 | 400, 500, 630 | 630, 700, 800 | 800, 1000, 1250, 1600 |
| Rated insulation voltage Ui (V) | 800 | 1000 | 1140 | ||||
| Rated impulse withstand voltage Uimp (kV) | 8 | 12 | |||||
| Rated operating voltage Ue (V), AC 50/60Hz | 400, 690 | 400, 690 (220/400 for 2P) | 400, 690 | 400, 690, 800, 1140 | |||
| Selective category | A | ||||||
| Arc distance (mm) | ≤50 | ≤100 | ≤120 | ||||
| Electrical life (operations) | 1500 | 1000 | 500 | ||||
| Mechanical life (operations) | 8500 | 7000 | 4000 | 2500 | |||
| Number of poles | 3P, 4P | 2P, 3P, 4P | 3P, 4P | ||||
| Icu at AC 400V, L / M type (kA) | 35 | 35 / 85 | 50 / 100 | 75 / 100 | |||
| Icu at AC 690V/800V/1140V, M type (kA) | — | 50 | |||||
| Ics at AC 400V, L / M type (kA) | 20 | 22 / 50 | 35 / 75 | 50 / 65 | |||
| Width W, 3P (mm) | 77 | 92 | 107 | 150 | 182 | 210 | |
| Width W, 4P (mm) | 103 | 122 | 142 | 198 | 240 | 280 | |
| Height H (mm) | 136 | 150 | 165 | 257 | 270 | 280 | 330 |
| Depth D, L / M type (mm) | 74 / 83 | 70.5 / 88 | 89 / 108 | 110 | 116 | 120 (3P), 118.5 (4P) | 137 |
| Standards | IEC 60947-2, GB/T 14048.2 |
| Code (Magnetic Only) | Code (Thermal-Magnetic) | Accessory Combination |
| 200 | 300 | No accessory |
| 208 | 308 | Alarm contact |
| 210 | 310 | Shunt release |
| 220 | 320 | Auxiliary contact |
| 230 | 330 | Undervoltage release |
| 240 | 340 | Shunt release + auxiliary contact |
| 250 | 350 | Shunt release + undervoltage release |
| 260 | 360 | Two sets of auxiliary contacts |
| 270 | 370 | Auxiliary contact + undervoltage release |
| 218 | 318 | Shunt release + alarm contact |
| 228 | 328 | Auxiliary contact + alarm contact |
| 238 | 338 | Undervoltage release + alarm contact |
| 248 | 348 | Shunt release + auxiliary contact + alarm contact |
| 268 | 368 | Two sets of auxiliary contacts + alarm contact |
| 278 | 378 | Auxiliary contact + undervoltage release + alarm contact |
