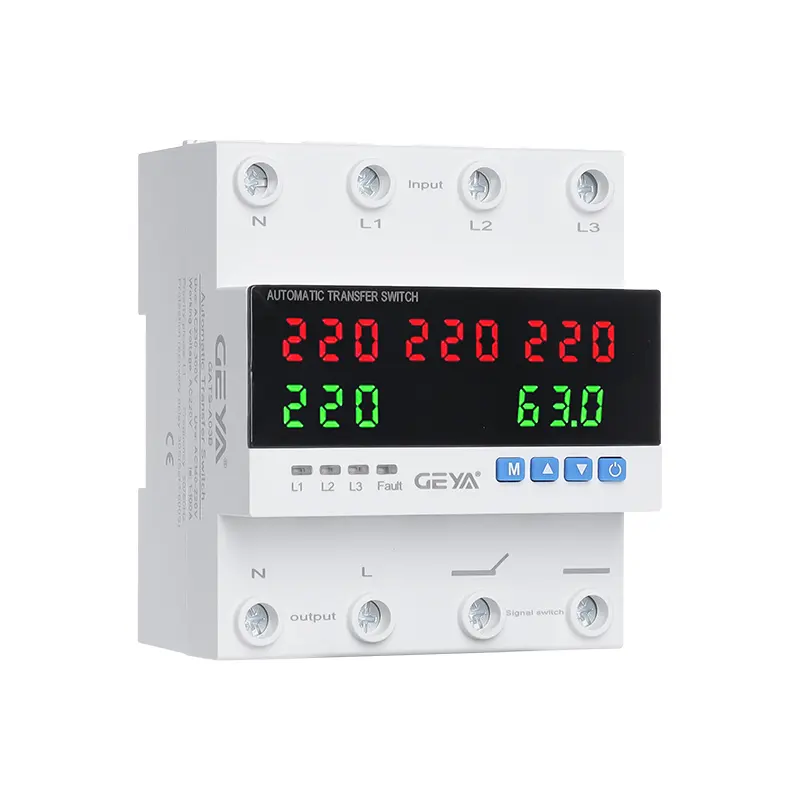

GATS-A03B 2P ATS with Signal Feedback
Կոնտակտորներ և փոխարկիչներ։ GATS-A03B 2P ATS with Signal Feedback։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Կոնտակտորներ և փոխարկիչներ |
Տեխնիկական բնութագրեր
| Item | Data |
| Supply terminals | N, L1, L2, L3 |
| Rated supply voltage | AC 3×220V (N-L1/L2/L3) |
| Output | Single-phase, 2P (Lout + N), plus signal switch terminals |
| Rated frequency | 50/60 Hz |
| Umax setting range | 230–300V |
| Umin setting range | 140–220V |
| Auto-reclosing delay (Ton) | 1–600s |
| Return delay to priority phase | 1–600s |
| Switch delay to reserve phases | <0.2s |
| Voltage hysteresis | 5V |
| Over-voltage trip delay | 0.1s when the measured voltage is below 350V; 0.02s when it exceeds 350V |
| Under-voltage trip delay | |
| Voltage accuracy | <1% |
| Max. operating phase voltage | 350V |
| Rated operating current | 63A / 80A / 100A |
| Max. operating current | 63A / 80A / 100A |
| Display | 5 windows: L1-in, L2-in, L3-in voltage; L-out voltage; I-out current |
| Indication | L1 / L2 / L3 output LEDs and Fault LED |
| Keys | M (menu selection / reset), ▲ (digit +), ▼ (digit −), manual ON/OFF |
| Pollution degree | 3 |
| Electrical life | 10⁵ operations |
| Mechanical life | 10⁶ operations |
| Altitude | ≤2000m |
| Ambient temperature | -25°C to +50°C |
| Permissible relative humidity | ≤50% at 40°C, without condensation |
| Storage temperature | -25°C to +55°C |
| Mounting | 35mm DIN rail |
| Dimensions (W×H×D) | 90 × 95 × 66 mm per dimensional drawing; 63A body 96mm and 80A/100A body 104mm per the specification sheet |
| Code | Function | Setting Range | Factory Default |
| Pt | Power-on delay time | 1–600s | 5s |
| rt | Protection recovery delay | 1–600s | 30s |
| oU | Over-voltage protection value | 230–300V | 270V |
| uU | Under-voltage protection value | 140–220V | 170V |
| LS | Priority phase | L1 / L2 / L3 / Ato (auto) | L1 |
| oC | Over-current protection value | 1A–63A / 80A / 100A according to model | Rated current of the model |
| Ctt | Over-current protection action time | 0.1–10s | 0.5s |
| CC | Continuous over-current protection frequency | 0–20 | OFF |
| Model | Material Code | Rated Current | Over-Voltage Range (220V / 110V) | Under-Voltage Range (220V / 110V) | Defaults (220V / 110V) | Packing |
| GATS-A03B 2P 63A AC220V | 004040000226 | 63A | 230–300V / 110–300V | 140–220V / 80–220V | OV 270V / 140V UV 170V / 90V | 30 pcs |
| GATS-A03B 2P 80A AC220V | 004040000227 | 80A | 30 pcs | |||
| GATS-A03B 2P 100A AC220V | 004040000228 | 100A | 30 pcs |
| Item | GATS-A02 | GATS-A03B |
| Display windows | 4 (L1, L2, L3 voltage + output current) | 5 (L1, L2, L3 voltage + output voltage + output current) |
| Signal switch output | — | Included |
| Input / output arrangement | N, L1, L2, L3 in; Lout + N out; AC 3×220V, 50/60Hz | |
| Protection and setup menu | Identical: Pt, rt, oU, uU, LS, oC, Ctt, CC | |
| Current ratings | 63A / 80A / 100A |
