| Item | Specification |

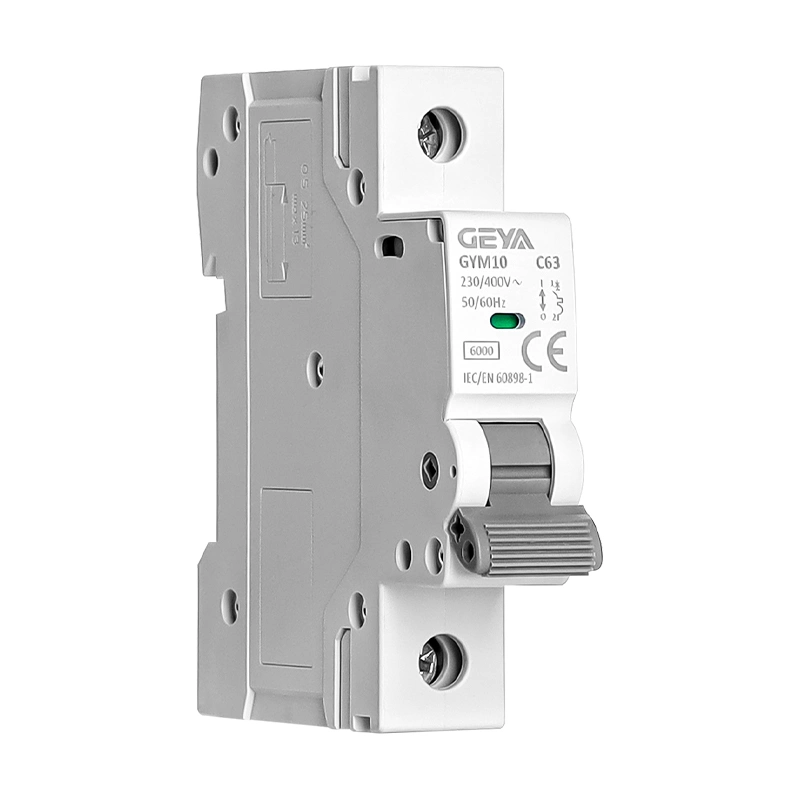

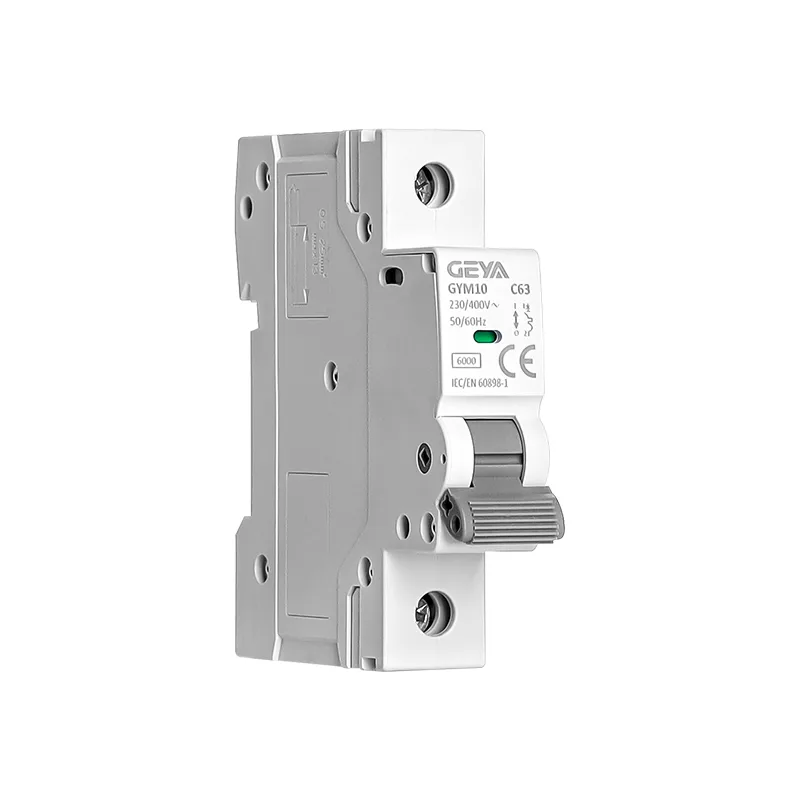

| Model | GYM10 |
| Standard | IEC/EN 60898-1, GB/T 10963.1, RoHS 2.0 |
| Rated current (In) | 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A |
| Rated voltage (Ue) | 240/415V AC; 230/400V AC |
| Rated frequency | 50/60Hz |
| Rated short-circuit capacity | 3000A / 4500A / 6000A |
| Tripping curve | B, C, D |
| Number of poles | 1P, 2P, 3P, 4P (3P+N) |
| Rated insulation voltage (Ui) | 500V |
| Rated impulse withstand voltage (Uimp) | 4kV |
| Mechanical life | 20,000 operations |
| Electrical life | 10,000 operations |
| Terminal capacity | 0.5-25mm², cage clamp terminal |
| Tightening torque | 2.0N·m |
| Degree of protection | IP20 |
| Internal structure | C65 modular structure, 35mm DIN rail mounting |
| Wiring option | Suffix T: single busbar / Suffix H: double busbar |
| Certification | CCC (3C), CE, CB, Brazil market certification |
