GEYA

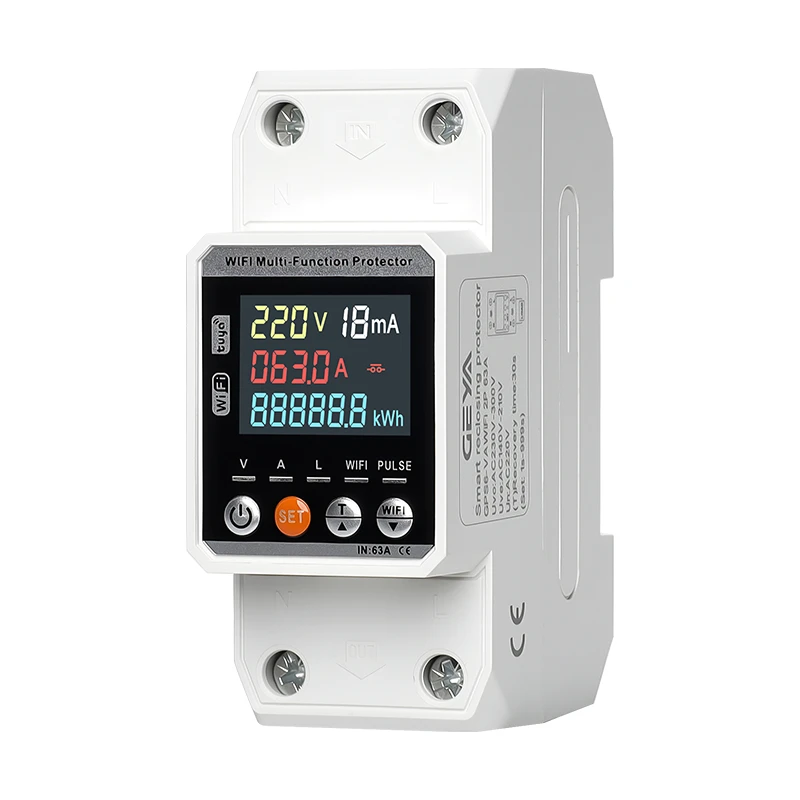

GPS6-VAWiFi 2P Voltage Protector
Լարման և գերլարման պաշտպանիչներ։ GPS6-VAWiFi 2P Voltage Protector։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Լարման և գերլարման պաշտպանիչներ |
Տեխնիկական բնութագրեր
| Parameter | Value | Notes |
| Product family | GPS6 | Voltage protector series |
| Model | GPS6-VAWiFi 2P 63A | Single 63A model |
| Nominal system voltage | 220V | Source product record |
| Input voltage | AC 140-300V | Technical parameter sheet |
| Poles | 2P | Source product record |
| Rated current | 63A | Source product record |
| WiFi software platform | Tuya | Exact app functions need confirmation |
| Overvoltage protection value | 230-300V; default 270V | Adjustable |
| Overvoltage recovery value | 225-295V; default 265V | Adjustable |
| Undervoltage protection value | 140-210V; default 170V | Use latest technical sheet; reconcile earlier 110-210V record |
| Undervoltage recovery value | 145-215V; default 175V | Adjustable |
| Overcurrent protection value | 0.1-63A; default 40A | For the 63A model |
| Overcurrent recovery value | 0-62A | For the 63A model |
| Leakage protection value | 10-99mA; default 20mA | Adjustable |
| Continuous overcurrent/leakage fault times | 1-20 times; default OFF | Adjustable |
| Power-on delay time | 1-999s; default 10s | Adjustable |
| Recovery delay time | 1-999s; default 30s | Adjustable |
| Action time | 1-30s; default 1s | Adjustable |
| Screen brightness time | 1-200s; default 20s | Adjustable |
| Display interval delay time | 1-500s; default 20s | Adjustable |
| Voltage/current/kWh calibration | -20% to +20% | Adjustable |
| Power consumption | ≤2W | Technical parameter sheet |
| Electrical and mechanical life | ≥100,000 cycles | Technical parameter sheet |
| Overall dimensions | 92 × 39 × 68 mm | Boundary dimension shown in supplied drawing |
| Display functions | Voltage, current, leakage current, kWh, kW and power factor | Based on supplied feature sheet and product image |
| Standards and certifications | Need confirmation | Confirm exact model scope before publication |
