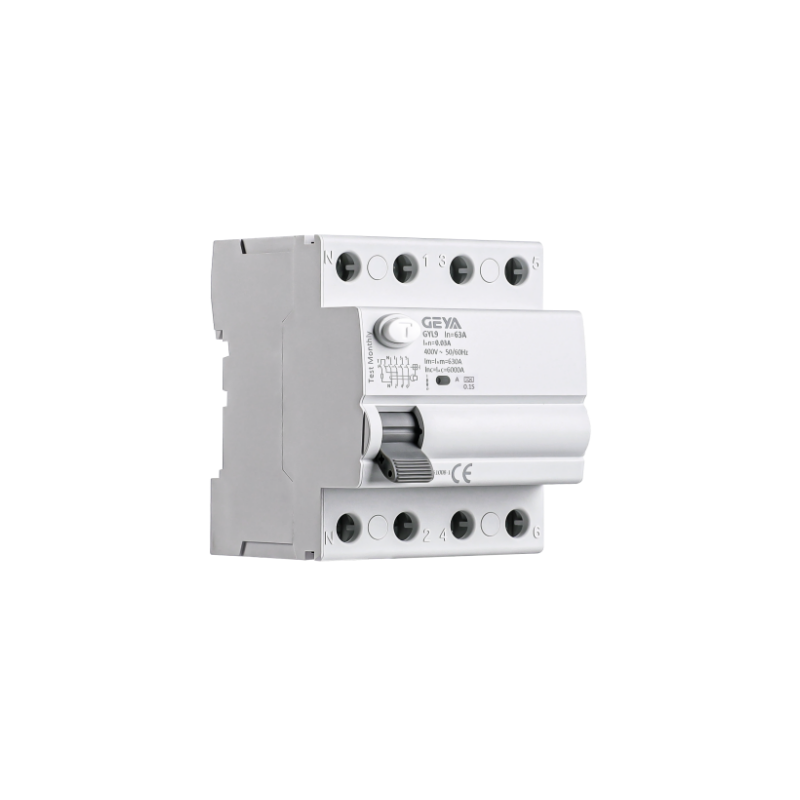

GYL9-A 1P+N 3P+N Type A RCCB
Ավտոմատներ և պաշտպանիչներ։ GYL9-A 1P+N 3P+N Type A RCCB։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ավտոմատներ և պաշտպանիչներ |
Տեխնիկական բնութագրեր
| Parameter | Specification |
| Product type | Type A RCCB |
| Residual-current detection | Sinusoidal AC and pulsating DC |
| Operating principle | Electromagnetic or electronic versions; confirm the selected configuration |
| Rated voltage (Un) | 230/240 V; 400/415 V |
| Rated current (In) | 16, 20, 25, 32, 40, 50, 63, 80, 100 A |
| Rated residual operating current (IΔn) | 30, 100, 300 mA |
| Poles | 1P+N; 3P+N |
| Frequency | 50/60 Hz |
| Reference standards | IEC/EN 61008-1; GB/T 16916.1 |
| Parameter | Specification |
| Rated insulation voltage (Ui) | 500 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated conditional short-circuit current (Inc) | 6 kA; 10 kA |
| Rated conditional residual short-circuit current (IΔc) | 6 kA; 10 kA |
| Making and breaking capacity (Im / IΔm) | 500 A for In ≤ 50 A; 10 × In for In = 63 A. Confirm other ratings before ordering. |
| Terminal tightening torque | 2.5 N·m |
| Conductor capacity | 1–35 mm² |
| Degree of protection | IP20 |
| Mounting | TH35-7.5 DIN rail |
| Mechanical / electrical life | 10,000 / 4,000 operations |
| Connection | Dual-busbar wiring arrangement |
| Indication | Residual-current fault indication |
| Tripping type | Rated current | IΔn | At IΔn | At 2IΔn | At 5IΔn | 5–200 A | 500 A |
| General type | 16, 20, 25, 32, 40, 50, 63, 80, 100 A | 30 / 100 / 300 mA | ≤ 0.10 s | ≤ 0.08 s | ≤ 0.04 s | ≤ 0.04 s | ≤ 0.04 s |
