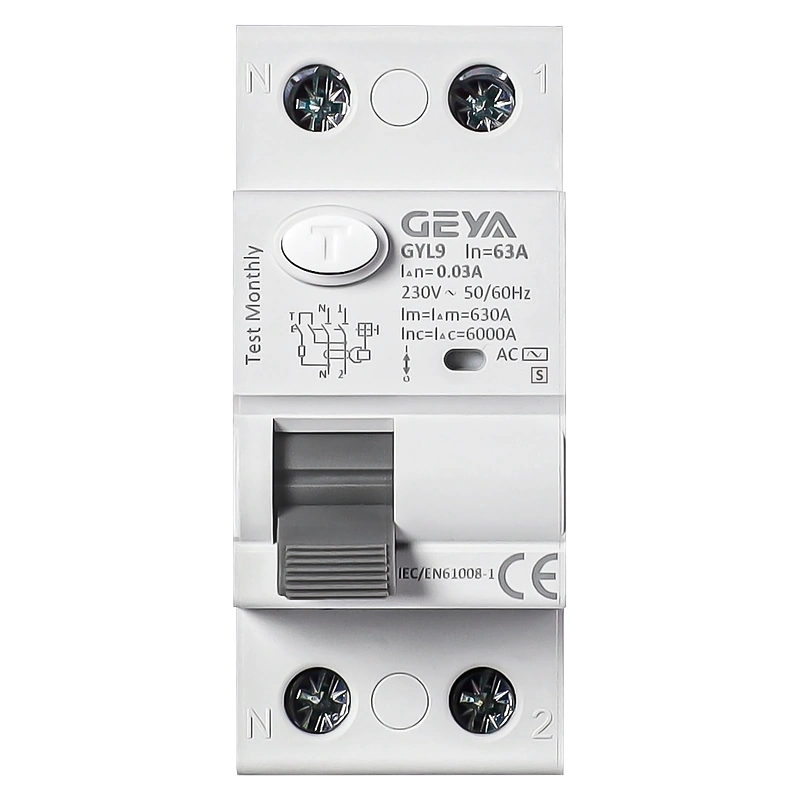

GYL9-AC-S 16–100 A Type AC-S Time-Delay RCCB

Ավտոմատներ և պաշտպանիչներ։ GYL9-AC-S 16–100 A Type AC-S Time-Delay RCCB։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։

Բրենդ	GEYA
Ապրանքային խումբ	Ավտոմատներ և պաշտպանիչներ

Տեխնիկական բնութագրեր

Parameter	Catalogue value
Product type	Type AC-S time-delay RCCB
Residual-current action type	AC-S with Type S operating-time bands
Residual-current detection	Sinusoidal AC
Reference standards	IEC/EN 61008-1; GB/T 16916.1
Rated voltage (Un)	230/240 V; 400/415 V
Rated current (In)	16, 20, 25, 32, 40, 50, 63, 80, 100 A
Rated residual operating current (IΔn)	30, 100, 300 mA
Poles	1P+N; 3P+N
Frequency	50/60 Hz
Rated insulation voltage (Ui)	500 V
Rated impulse withstand voltage (Uimp)	4 kV
Rated conditional short-circuit current (Inc)	6 kA; 10 kA
Rated conditional residual short-circuit current (IΔc)	6 kA; 10 kA
Rated making and breaking capacity (Im)	500 A for In ≤ 50 A; 10 × In for In = 63 A
Rated residual making and breaking capacity (IΔm)	500 A for In ≤ 50 A; 10 × In for In = 63 A

Parameter	Catalogue value
Terminal tightening torque	2.5 N·m
Conductor capacity	1–35 mm²
Degree of protection	IP20
Mounting	TH35-7.5 DIN rail
Connection feature	Dual-busbar wiring
Fault indication	Residual-current fault indication
Mechanical life	10,000 operations
Electrical life	4,000 operations

Rated current	Rated residual operating current	At IΔn	At 2IΔn	At 5IΔn	At 5–200 A	At 500 A
16, 20, 25, 32, 40, 50, 63, 80, 100 A	30, 100, 300 mA	0.15–0.50 s	0.06–0.20 s	0.05–0.15 s	0.04–0.15 s	0.04–0.15 s
