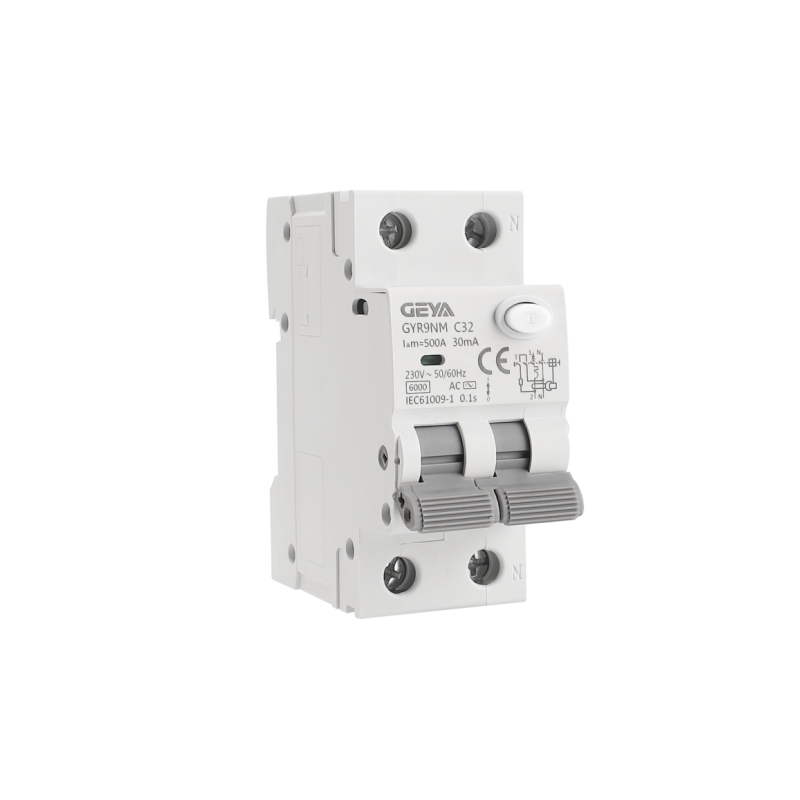

GYR9NM RCBO Residual Current Circuit Breaker with Overcurrent Protection
Ավտոմատներ և պաշտպանիչներ։ GYR9NM RCBO Residual Current Circuit Breaker with Overcurrent Protection։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ավտոմատներ և պաշտպանիչներ |
Տեխնիկական բնութագրեր
| Product name | GYR9N | |
| Standard | IEC/EN 61009-1, GB/T 16917.1 | |
| Type | AC | ■ |
| A | ■ | |
| Residual current protection type | ELE | ■ |
| ELM | ■ | |
| Pole | 1P+N, 3P+N | |
| Rated current（In） | 6、10、16、20、25、32、40 | |
| Rated residual operating current（I△n） | 30、100、300mA | |
| sensitivity | instant | ■ |
| delay | ― | |
| Rated voltage (Un) | 230/240V, 240/415V | |
| Rated insulation voltage（Ui） | 500V | |
| working frequency | 50/60Hz | |
| Rated impulse withstand voltage（Uimp） | 4kV | |
| Rated making and breaking capacity (Im) | 500A | |
| Rated short-circuit capacity (Icn) | 6000A | |
| Rated residual inoperative current | 0.5I△n | |
| Residual current action breaking time | Residual currentI△=1I△n | 0.1s |
| Residual currentI△=2I△n | 0.08s | |
| Residual currentI△=5I△n | 0.04s | |
| Mechanical life / electrical life | 20,000 / 4,000 operations | |
| Degree of protection | Direct installation | IP20 |
| Installed in the distribution box | IP40 | |
| Working ambient temperature | -25℃+60℃ | |
| Storage ambient temperature | -35℃+85℃ | |
| Wiring capacity | Copper hard wire | 1-25mm² |
| Flexible wire or hoop wire terminal | 1-16mm² | |
| Contact status indication | ― | |
| Leakage-fault indication | Yes | |
| Loop identification | ■ |
